Tape Chart View: To change the view of how the Tape Chart is displayed, use the Room drop-down list and the date range selectors. By default, all Rooms are displayed.

  • If you would like to view the list with one Room Type at a time by selecting a room type from, the drop down list.
  • To change the date range, select the first date of the range by using the calendar icon. Then enter the number of days you want to view. and click Refresh. The system will display up to 60 days, however more than 30 days often creates an excessively large screen that could take up to several minutes to render. For best performance, the Tape Chart defaults to 15 days and we recommend you limit the tape chart to no more than 30 days.
  • To advance or go back 15 days in the Calendar view, click on the links title "Prev 15 days | Next 15 days"


All Bookings appear on the Tape Chart color coded and with an an icon to indicate Booking Status. There are four types of Booking Status that are displayed according the to the status of the booking. These will automatically update on the Tape Chart after you modify the booking. For example, if you have an unconfirmed booking in red and then change the status of the booking to confirmed, it will automatically change to blue on the Tape Chart. It is important to note that reservations that do not have rooms assigned will not show up on the tape chart. To change the status of a booking, go to the Booking Details of the Guest.

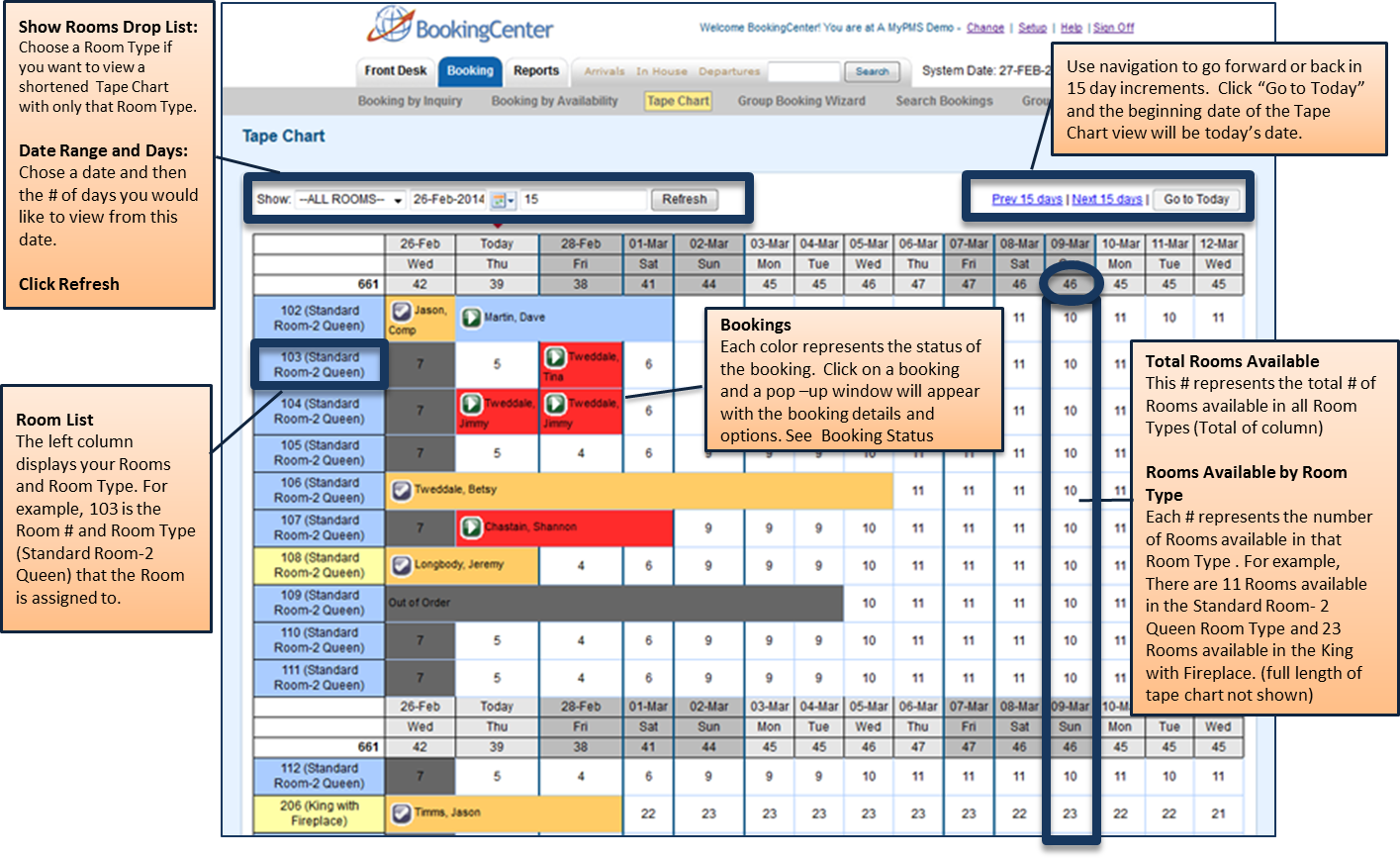

Tape Chart Guide

Click on image to enlarge


Tape Chart Color Key (found at bottom of Tape Chart)
